Pipe earthing electrodes and copper bonded rods manufactured by Ashima under the ACME Safe Earthing brand, plus copper and GI plates and strips. 44 catalogue codes for residential, commercial, solar, telecom and industrial earthing.
Manufactured by Ashima: Pipe earthing electrodes, Copper bonded ground rods. Other items on this page are supplied from other manufacturers; each family is labelled.
Manufactured by Ashima Electrotech · ACME Safe Earthing

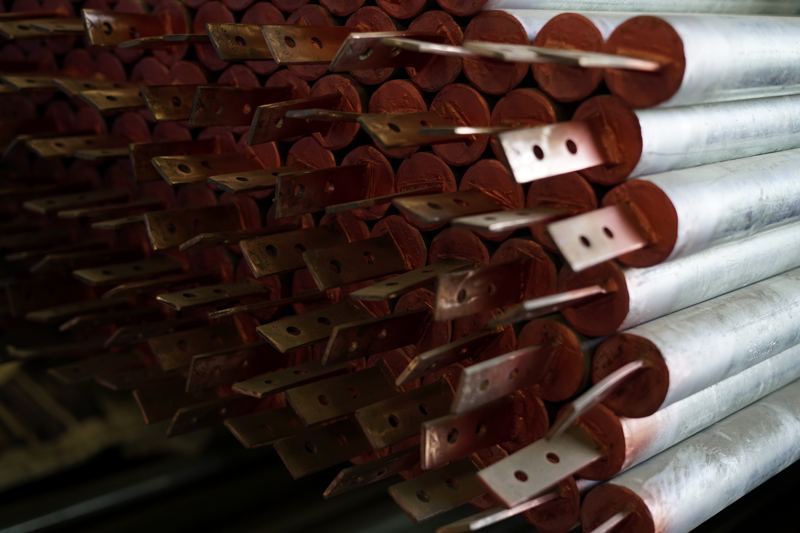

Pipe earthing electrodes
A galvanised iron or copper pipe with an inner conductor, filled with conductive compound, supplied in five configurations across 26 catalogue codes.
Full description
Each electrode is a galvanised iron or copper pipe with an inner conductor - a second pipe, a GI strip or a copper strip - filled with a conductive, moisture-retaining compound. The fill holds earth resistance low and stable, so fault currents dissipate smoothly and lightning surges are carried away. Hot-dip galvanising protects the GI variants against corrosion; the pure copper and copper-bonded variants hold up in highly corrosive soils. Pure copper electrodes are supplied with a 1.0 mm pipe wall.
- Configurations
- 5 conductor pairings
- Pipe diameter
- 50 / 80 mm
- Length
- 2 / 3 m
- Inner conductor
- 25 × 3 to 50 × 6 mm
- Fill
- Conductive moisture-retaining compound
- Catalogue codes
- 26
26 catalogue codes
No catalogue codes match this filter.
| Configuration | Pipe dia | Length | Inner conductor | Catalogue code |
|---|---|---|---|---|
| GI pipe-in-pipe | 50 mm | 2 m | 25 mm pipe | AGP50252 |
| GI pipe-in-pipe | 50 mm | 3 m | 25 mm pipe | AGP50253 |
| GI pipe-in-pipe | 80 mm | 2 m | 40 mm pipe | AGP80402 |
| GI pipe-in-pipe | 80 mm | 3 m | 40 mm pipe | AGP80403 |
| GI pipe + GI strip | 50 mm | 2 m | 25 × 3 mm | A50G2532 |
| GI pipe + GI strip | 50 mm | 2 m | 32 × 5 mm | A50G3252 |
| GI pipe + GI strip | 50 mm | 3 m | 25 × 3 mm | A50G2533 |
| GI pipe + GI strip | 80 mm | 3 m | 25 × 3 mm | A80G2533 |
| GI pipe + GI strip | 80 mm | 3 m | 32 × 6 mm | A80G3253 |
| GI pipe + GI strip | 80 mm | 3 m | 50 × 6 mm | A80G5063 |
| GI pipe + Cu strip | 50 mm | 2 m | 25 × 3 mm | A50C2532 |
| GI pipe + Cu strip | 50 mm | 2 m | 32 × 5 mm | A50C3252 |
| GI pipe + Cu strip | 50 mm | 2 m | 40 × 6 mm | A50C4062 |
| GI pipe + Cu strip | 50 mm | 3 m | 25 × 3 mm | A50C2533 |
| GI pipe + Cu strip | 50 mm | 3 m | 32 × 5 mm | A50C3253 |
| GI pipe + Cu strip | 50 mm | 3 m | 40 × 6 mm | A50C4063 |
| GI pipe + Cu strip | 80 mm | 2 m | 25 × 3 mm | A80C2532 |
| GI pipe + Cu strip | 80 mm | 3 m | 25 × 3 mm | A80C2533 |
| GI pipe + Cu strip | 80 mm | 3 m | 32 × 5 mm | A80C3253 |
| GI pipe + Cu strip | 80 mm | 3 m | 50 × 6 mm | A80C5063 |
| Pure copper pipe + Cu strip | 50 mm | 2 m | 25 × 3 mm | A50CC25321 |
| Pure copper pipe + Cu strip | 50 mm | 2 m | 32 × 5 mm | A50CC32521 |
| Pure copper pipe + Cu strip | 50 mm | 3 m | 25 × 3 mm | A50CC25331 |
| Pure copper pipe + Cu strip | 50 mm | 3 m | 32 × 5 mm | A50CC32531 |
| Copper-bonded MS pipe + Cu strip | 50 mm | 2 m | 25 × 3 mm | — |
| Copper-bonded MS pipe + Cu strip | 50 mm | 3 m | 25 × 3 mm | — |
Manufactured by Ashima Electrotech · ACME Safe Earthing
Copper bonded ground rods
A high-strength steel rod uniformly coated with pure electrolytic copper, offered in two coating classes and three lengths across five catalogue codes.
Full description
The Copper Bonded Ground Rod is a high-strength steel rod uniformly coated with pure electrolytic copper, combining the conductivity and corrosion resistance of copper with the mechanical strength of a steel core. It dissipates fault currents and lightning surges at low resistance and withstands tough soil conditions with little maintenance. Two coating classes are catalogued, 40-50 µm and 250-270 µm, in 1, 2 and 3 m lengths.
- Core
- High-strength steel
- Coating
- Pure electrolytic copper
- Diameter
- 14 and 17.2 mm
- Length
- 1 / 2 / 3 m
- Coating thickness
- 40-50 or 250-270 µm
- Catalogue codes
- 5
| Length | Diameter | Copper coating | Catalogue code |
|---|---|---|---|
| 1 m | 14 and 17.2 mm | 40-50 µm | ACBR040M1 |
| 2 m | 14 and 17.2 mm | 40-50 µm | ACBR040M2 |
| 3 m | 14 and 17.2 mm | 40-50 µm | ACBR040M3 |
| 2 m | 17.2 mm | 250-270 µm | ACBR250M2 |
| 3 m | 17.2 mm | 250-270 µm | ACBR250M3 |
Supplied by Ashima Electrotech

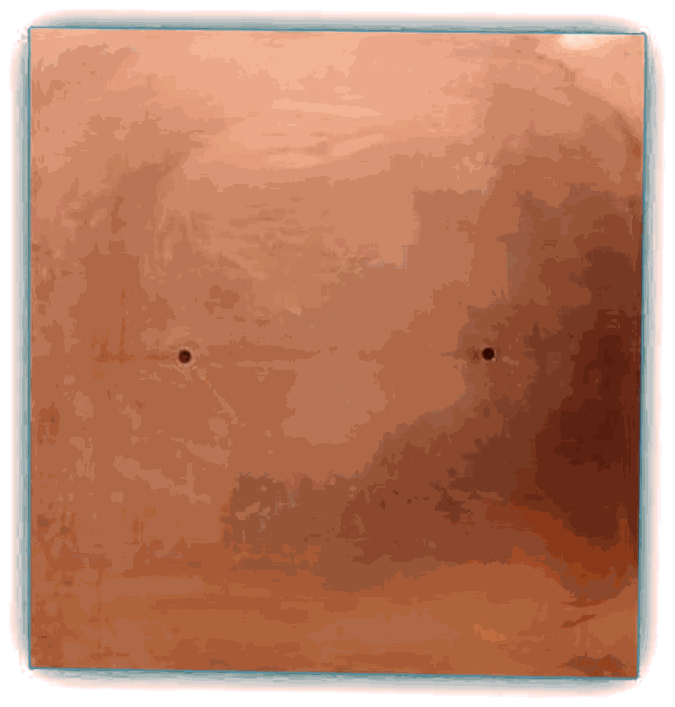

Earthing plates
Flat earthing plates in pure copper or galvanised iron, from 300 × 300 mm to 600 × 600 mm, in seven model sizes.
Full description
Copper plates are made from high-conductivity pure copper and hold a stable earth resistance over time. GI plates are the galvanised iron equivalent, specified for medium- and low-voltage work where an economical plate is wanted. Both dissipate fault current, resist corrosion and need little maintenance. Model selection follows duty: 300 × 300 mm for compact and residential installations, 450 × 450 mm for standard residential and commercial work, and 600 × 600 mm for heavy-load and industrial service.
- Material
- Pure copper or GI
- Plate size
- 300 / 450 / 600 mm square
- Thickness
- 3 to 10 mm
- Duty
- Residential to industrial
- Models
- 7
| Material | Plate size | Thickness | Duty | Model |
|---|---|---|---|---|
| Pure copper | 300 × 300 mm | 3 mm | Compact, small installations | CEP-300 × 300 × 3 |
| Pure copper | 450 × 450 mm | 6 mm | Residential and commercial | CEP-450 × 450 × 6 |
| Pure copper | 600 × 600 mm | 6 mm | Heavy-duty | CEP-600 × 600 × 6 |
| Pure copper | 600 × 600 mm | 10 mm | Industrial grade | CEP-600 × 600 × 10 |
| Galvanised iron | 300 × 300 mm | 6 / 8 / 10 mm | Compact, residential | GI-300 × 300 |
| Galvanised iron | 450 × 450 mm | 6 / 8 / 10 mm | Medium load | GI-450 × 450 |
| Galvanised iron | 600 × 600 mm | 6 / 8 / 10 mm | Heavy load | GI-600 × 600 |
Supplied by Ashima Electrotech

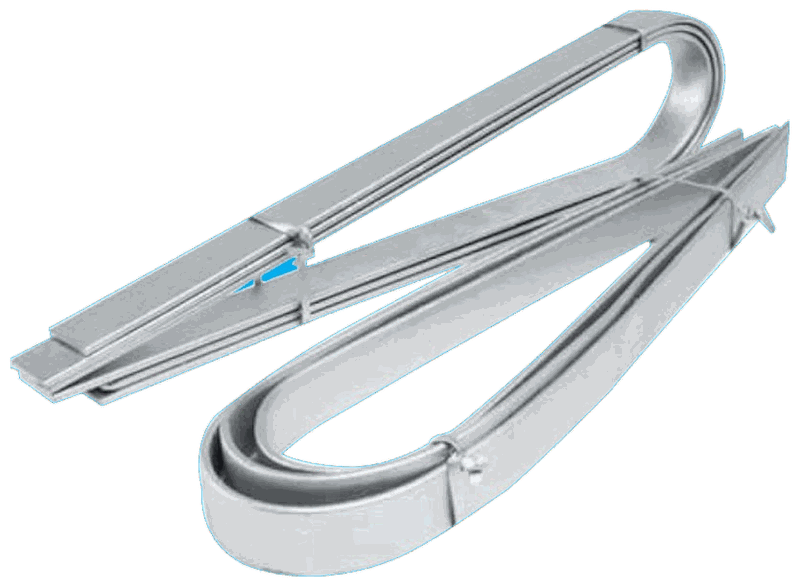

Earthing strips
Flat earthing tape in galvanised iron or pure copper, in three cross-sections from 25 × 3 mm to 50 × 6 mm.
Full description
Earthing strip provides a low-resistance path for fault and leakage currents. GI strip is the economical option and resists corrosion and environmental damage; copper strip is specified where conductivity matters most, including sensitive electronic installations. The same three cross-sections are catalogued in both materials: 25 × 3 mm for light duty, 25 × 6 mm for medium duty, and 50 × 6 mm for substations and industrial runs.
- Material
- GI or pure copper
- Cross-sections
- 25 × 3, 25 × 6, 50 × 6 mm
- Duty
- Light, medium, heavy
- Models
- 6
| Material | Cross-section | Duty | Model |
|---|---|---|---|
| Galvanised iron | 25 × 3 mm | Light-duty, residential projects | GI-25 × 3 |
| Galvanised iron | 25 × 6 mm | Medium-duty, commercial buildings | GI-25 × 6 |
| Galvanised iron | 50 × 6 mm | Heavy-duty, substations and industries | GI-50 × 6 |
| Pure copper | 25 × 3 mm | Light-duty, residential earthing | Cu-25 × 3 |
| Pure copper | 25 × 6 mm | Medium-duty, commercial projects | Cu-25 × 6 |
| Pure copper | 50 × 6 mm | Heavy-duty, substations and industries | Cu-50 × 6 |
Built to stay buried.
Hot-dip galvanised
GI pipe and strip are hot-dip galvanised, so the coating covers cut ends and drilled holes as well as the body.
Compound-filled
Pipe electrodes are filled with a conductive, moisture-retaining compound that holds resistance down as the soil dries.
Electrolytic copper bond
Copper bonded rods carry a uniform electrolytic copper coating at 40–50 or 250–270 µm over a high-strength steel core.
Made in Jaipur
Pipe electrodes and copper bonded rods are manufactured by Ashima Electrotech under the ACME Safe Earthing brand.
What to send us
An electrode is chosen from the soil, not from a catalogue. These four figures let us size it and quote a code. Send these with the quantity and delivery city and we will quote.
- 01 Soil resistivity at the site Ω·m
- 02 Target earth resistance Ω
- 03 Fault current and duration kA / s
- 04 Available installation depth m
