Manufactured by Ashima, at our factory near Jaipur.

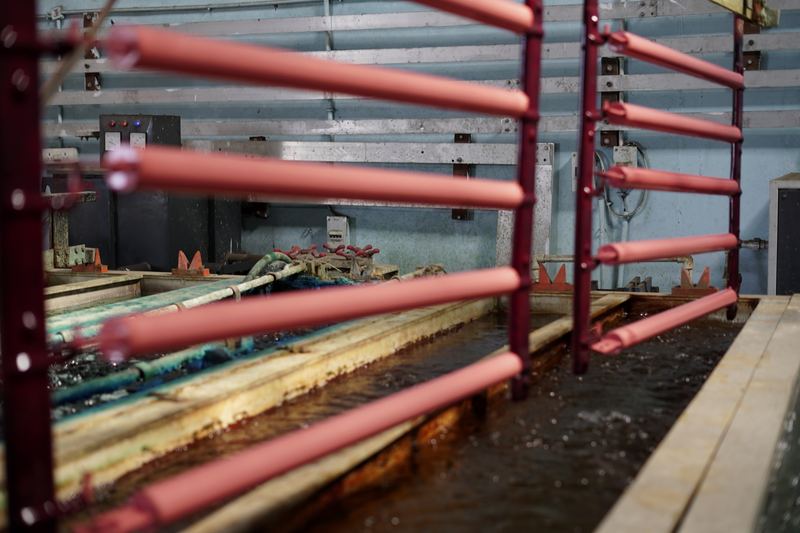

Copper-bonding line at our factory in Chomu, Jaipur.
Our own manufacturing is in earthing. Pipe electrodes, copper bonded rods, earth enhancement compound and the 10-inch FRP pit cover are made by Ashima Electrotech and sold under the ACME Safe Earthing brand.
What we make
Pipe earthing electrodes
GI pipe-in-pipe, GI pipe with GI or copper strip, pure copper and copper-bonded. 50 and 80 mm, 2 and 3 m. 26 catalogue codes.
Copper bonded ground rods
High-strength steel core with electrolytic copper coating, 40–50 or 250–270 µm. 14 and 17.2 mm, 1 to 3 m.
Earth Enhancement Compound
Backfill compound. Resistivity below 0.12 Ω·m, pH 7–10, sulphur below 2%. 10, 20 and 25 kg bags.
FRP pit cover, 10 inch
Tapered circular fibre reinforced plastic cover with factory-built holes for pipe and strip.
How the electrodes are built
- Hot-dip galvanised
- GI pipe and strip are hot-dip galvanised, so the coating covers cut ends and drilled holes as well as the body.
- Compound-filled
- Pipe electrodes are filled with a conductive, moisture-retaining compound that holds resistance down as the soil dries.
- Electrolytic copper bond
- Copper bonded rods carry a uniform electrolytic copper coating over a high-strength steel core, in two coating classes.
- Five configurations
- Pipe-in-pipe, GI + GI strip, GI + copper strip, pure copper + copper strip and copper-bonded MS pipe, each in standard diameters and lengths.
Inside the factory
Photographed at our plant in Silver Soil Industrial Park, Chomu.

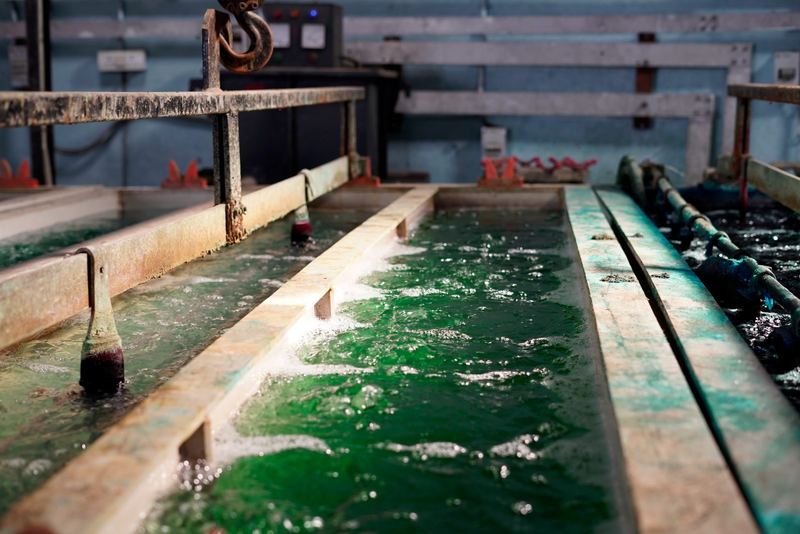

Plating tanks, copper-bonding line

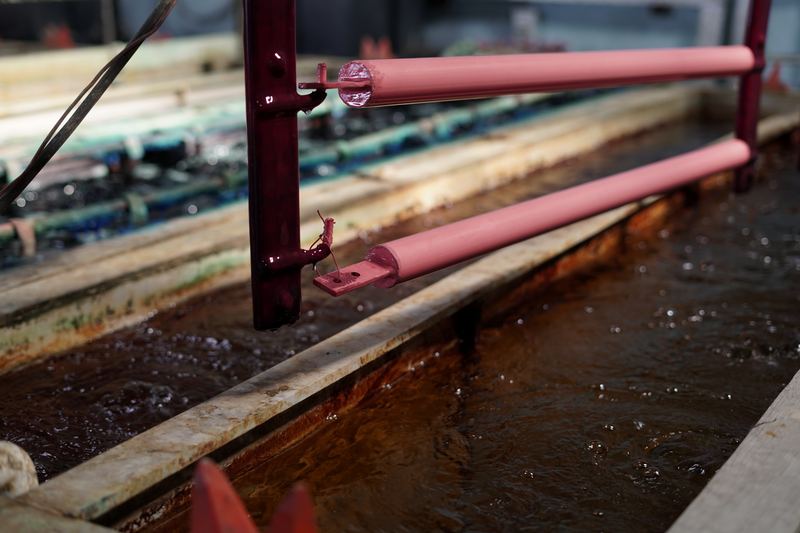

Copper bonded rods

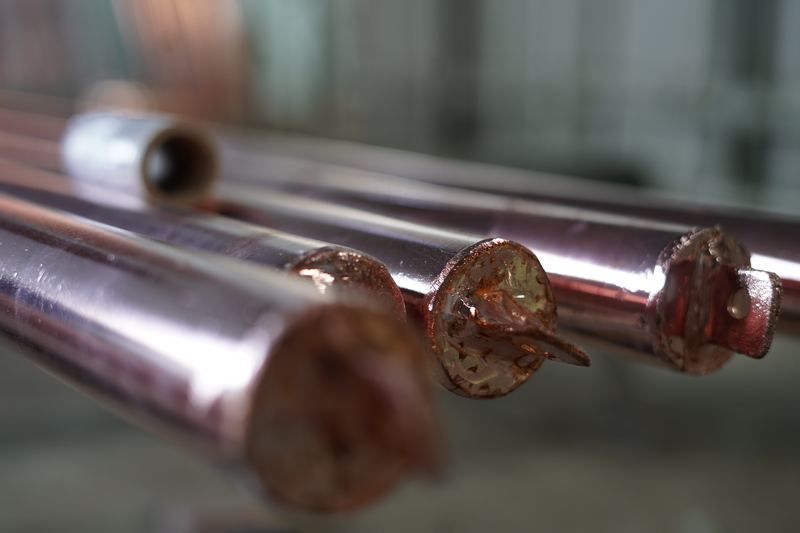

Copper bonded rod ends

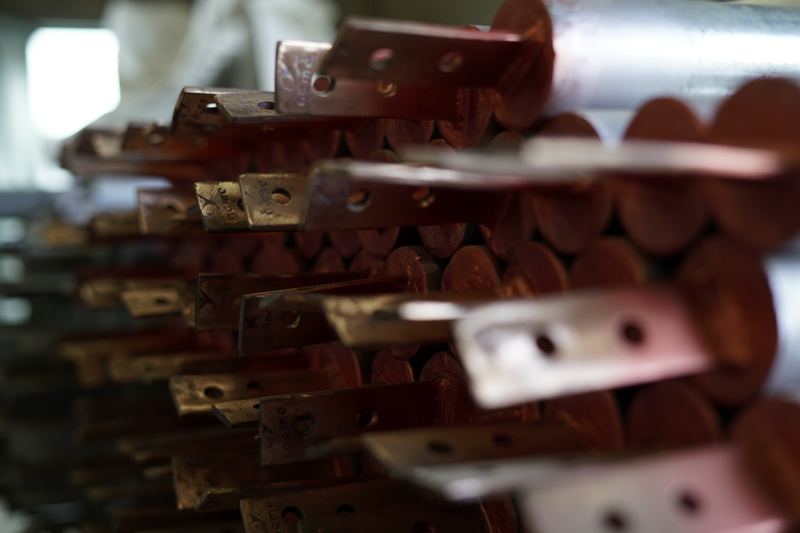

GI pipe electrodes with copper strip

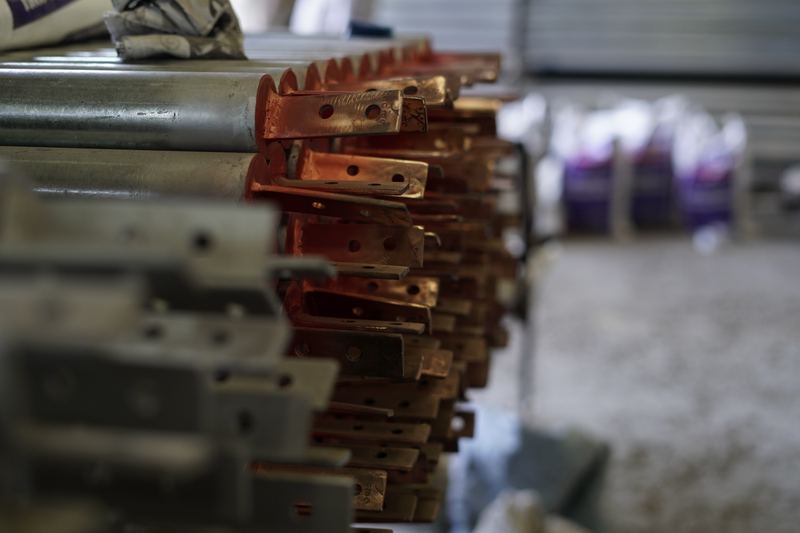

Pipe electrodes in stock
ACME Earth Enhancement Compound

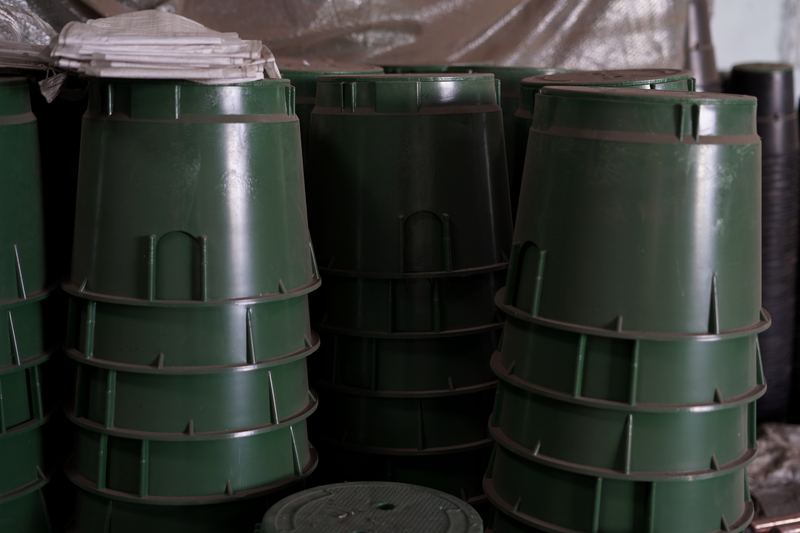

ACME FRP pit covers

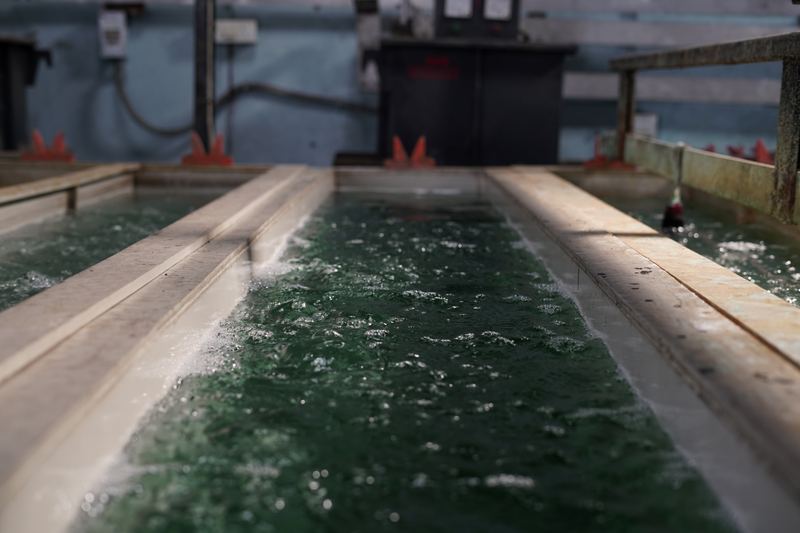

Rods in the plating tank

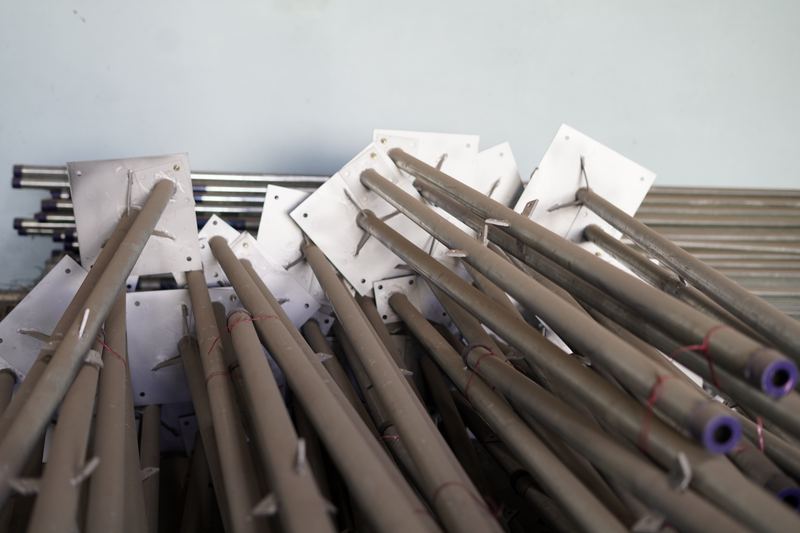

Electrodes ready for dispatch
Visit the factory
Factory: Plot No. 197–198, Silver Soil Industrial Park, Gram Anatpura, Govindgarh, Chomu, Jaipur, Rajasthan 303712.
Head office: G-4-B, Indraprastha Residency, Swage Farm, Bhagawan Marg, Nandpuri, Sodala, Jaipur, Rajasthan 302019.
Factory visits and inspections for project orders can be arranged. Call before you come.
Documentation and test reports
For compliance-bound projects, ask for the current datasheet and test documentation for the exact product and size you are buying. We will tell you what is available for that product.
For project orders we can quote to your BOQ or drawing. Send the electrode type, length, diameter, quantity and delivery city.
